LPKF ProtoMat D104

Mechanical and Laser Machining in One System


The range of PCB prototyping has now been supplemented with the LPKF ProtoMat D104 with an integrated high-precision UV laser. The ProtoMat D104 combines the best of two worlds and adds new machining options such as depaneling of flex and rigid-flex boards and machining of fired ceramics. As well as the precise geometries with straight side walls required in RF circuits to PCB prototyping.

Multifunctional and a High Performer

Chemical-free production of high-quality circuit boards in the R&D department has clear advantages in the time-to-market for new products. Circuit board plotters generate a complex circuitry on a metal-coated base material through insulation channels. Conductive traces are separated from the base material by insulating channels made using various tools such as milling and drilling machines. The LPKF ProtoMat D104 has perfected this functionality, exhibiting spindle speeds of up to 100 000 RPM, up to 15 auto-select tools, and a repeatability of 1 μm.

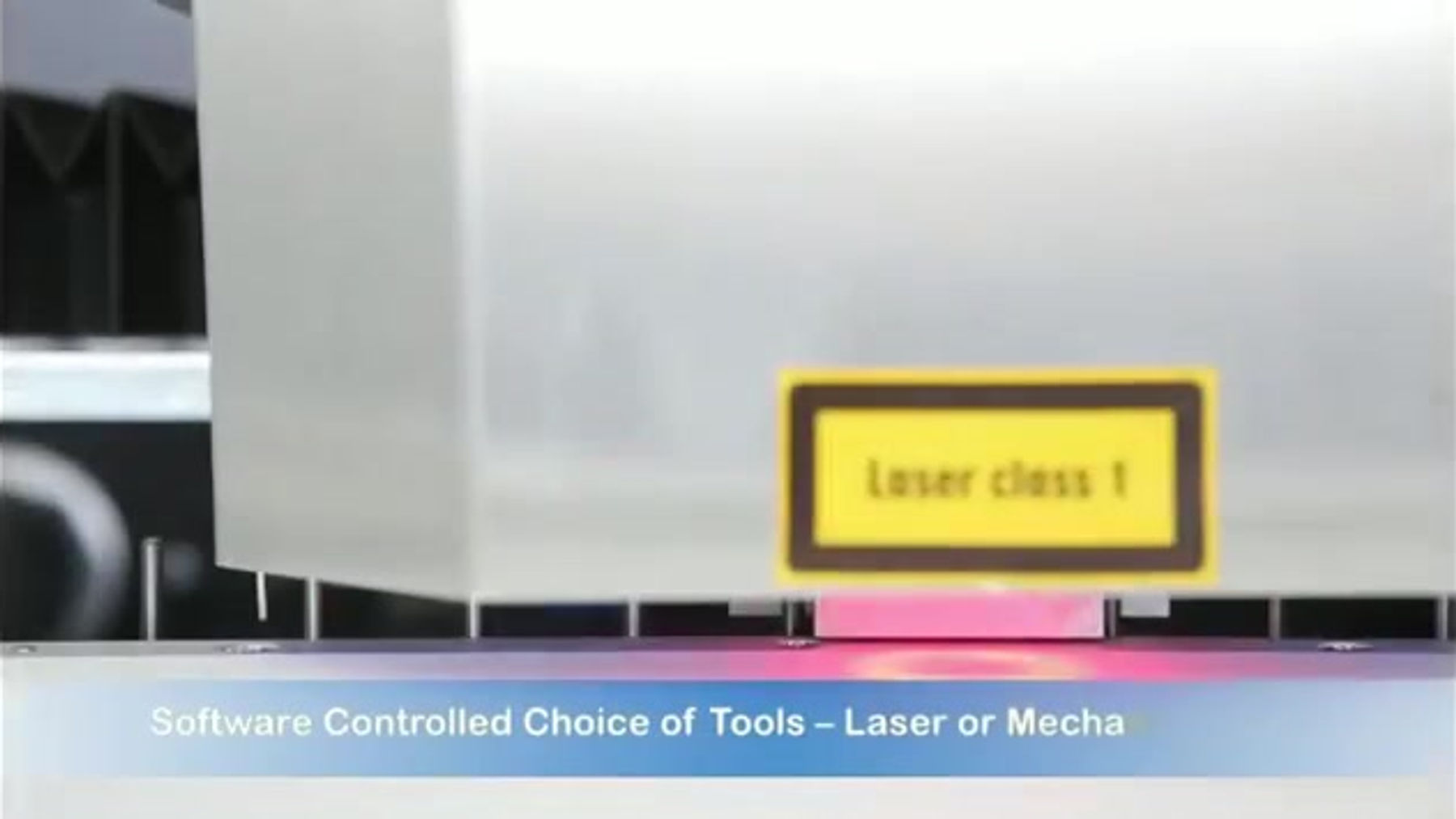

The integrated UV laser extends the range of possible applications: With a focus size of just 15 µm, minimum PCB track widths of 50 μm and spaces of 15 μm can be achieved. The smart control system and the advanced software decide independently when the precise laser or the faster mechanical tools are used - depending on the board layout.

Datos Técnicos

LPKF ProtoMat D104

Laser class

Work area (X x Y x Z)

Mechanical Resolution
(X, Y und Z)


Travel speed

Milling spindle

Tool change

Drilling speed

Diameter of focused laser beam

Laser structuring rate

Laser power (output)

Laser wavelength


System dimensions

(W x H x D) incl.




Operating conditions

Power supply
(V, Hz, W)

Ambient temperature

Compressed air supply


Hardware and software


Required accessories

0.3 μm (0.012 mil)

305 mm x 229 mm x 10 mm
(12” x 9” x 0.4”)


1 μm (0.04 mil)

100 mm/s (3.7”/s)

100 000 U/min, software controlled

Automatic, 15 positions

120 strokes/min

15 µm (0.6 mil)

2.8 mm/s on 18 µm Cu

100 mW

UV range

LPKF CircuitPro (included)

Vision system for optical fiducials/width monitoring, status light, vacuum table, pneumatic working depth limiter

< 100 kg (220.5 lbs)

660 mm x 700 mm x 870 mm
(26” x 27.6” x 34.3”)

22 °C ± 2 °C (71.6 °F ± 4 °F)

AC 85 V - 260 V, 50 - 60 Hz, 440 W

6 bar / < 100 l/min (87 psi / < 3.5 cfm)

Windows XP, 32 bit or Windows 7, 32/64 bit, min. 2 GHz Single Core, 2 GB RAM, opt. 2.6 GHz Dual Core, 8 GB RAM, 2 x USB 2.0, screen resolution 1024 x 768 pixels

Exhaust unit

Brochure LPKF ProtoMat D104
Download PDF
